💾 The Ultimate Guide to the Samsung 990 PRO SSD

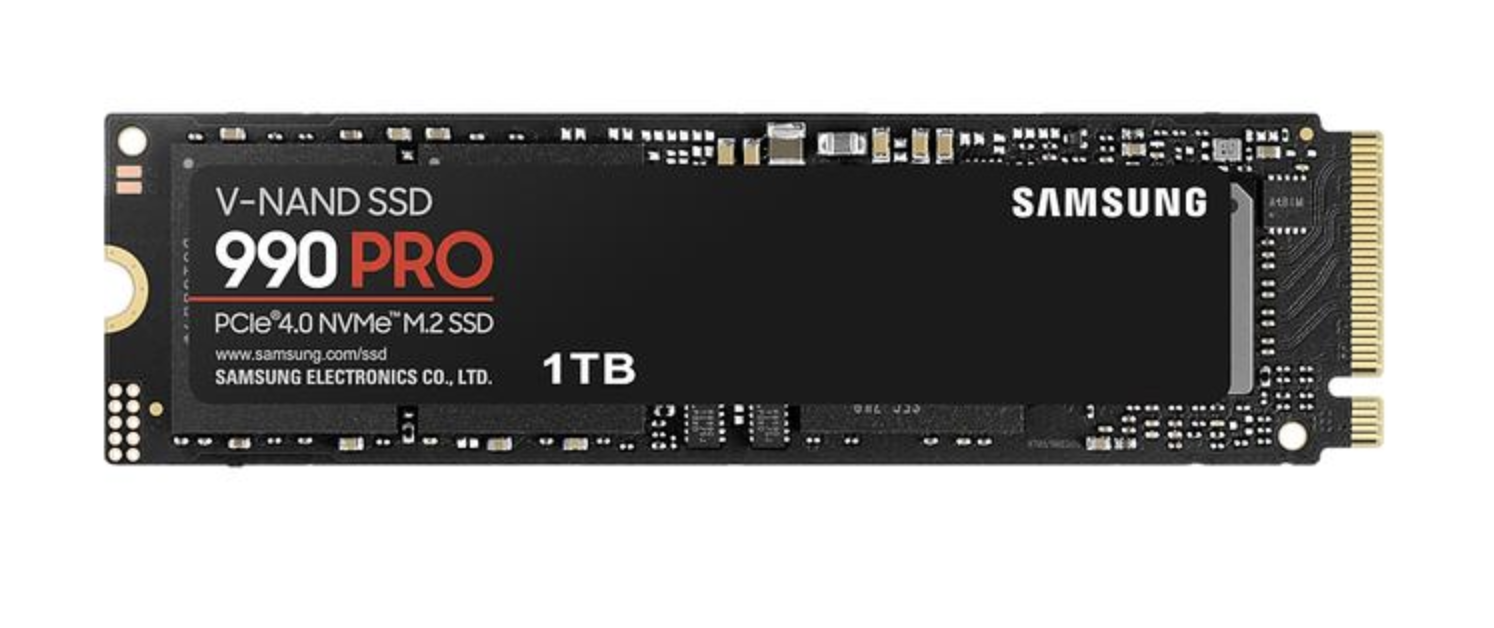

The Samsung 990 PRO is one of Samsung's flagship PCIe 4.0 NVMe SSDs, designed for high-performance gaming, content creation and demanding desktop workloads.
Despite some newer claims surrounding PCIe 6.0 SSDs, the 990 PRO itself is not a PCIe 6.0 drive. It uses PCIe 4.0 x4 and NVMe 2.0, with sequential read speeds of up to 7,450 MB/s and sequential writes of up to 6,900 MB/s.
The distinction is important because Samsung's newer 9100 PRO is the company's PCIe 5.0 generation, reaching up to 14,800 MB/s read speeds.
⚡ PCIe 4.0 Performance
The 990 PRO was designed to push PCIe 4.0 close to its practical limits.
Samsung rates the drive for:
| Specification | Samsung 990 PRO |
|---|---|
| Interface | PCIe 4.0 x4 |
| Protocol | NVMe 2.0 |
| Sequential read | Up to 7,450 MB/s |
| Sequential write | Up to 6,900 MB/s |
| Random read | Up to 1.6M IOPS |
| Random write | Up to 1.55M IOPS |
| Form factor | M.2 2280 |
| NAND | Samsung V-NAND TLC |
| DRAM | LPDDR4 |
| Capacities | 1TB, 2TB, 4TB |
Performance varies depending on the system, firmware and workload.
🌡️ Thermal Throttling and Heat Management
High-speed NVMe drives generate considerable heat under sustained workloads, making thermal management particularly important.
Samsung equipped the 990 PRO with a nickel-coated controller and Dynamic Thermal Guard technology. The system monitors temperature and manages the SSD to help maintain performance while avoiding excessive heat.

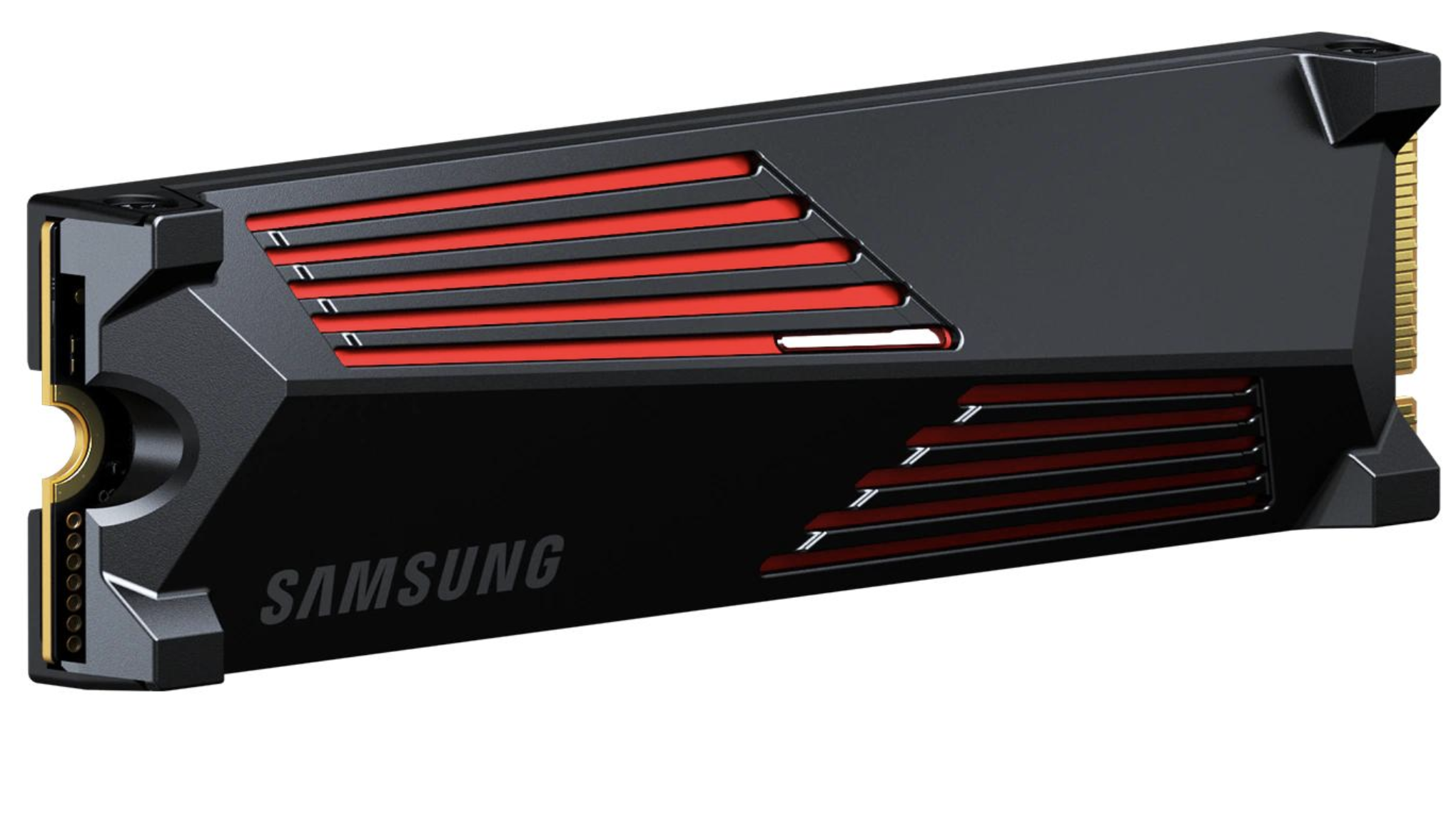

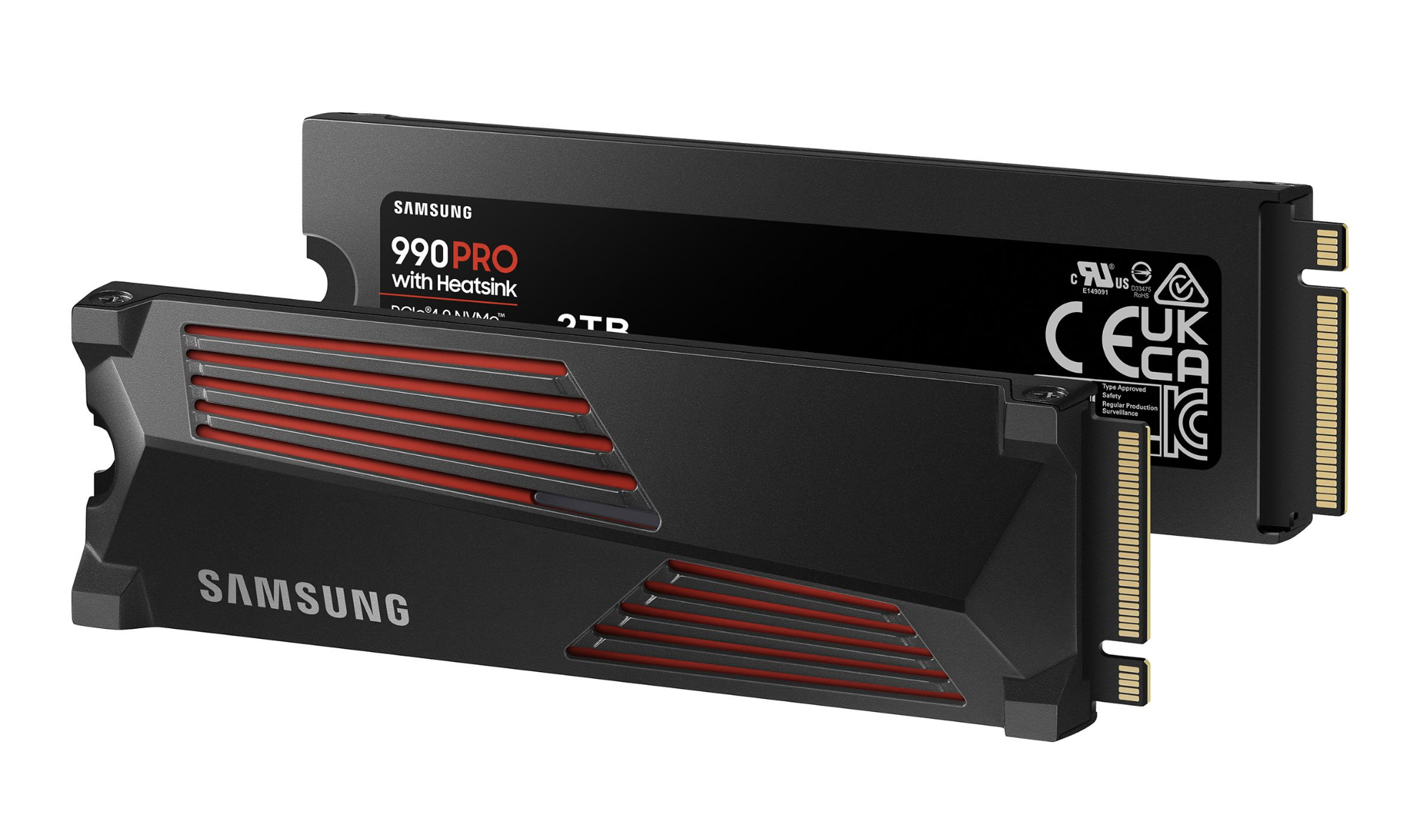

Samsung also sells a dedicated 990 PRO with Heatsink. Its integrated heatsink is designed to improve temperature control during demanding workloads.
The standard drive is rated for an operating temperature range of 0°C to 70°C, with Samsung recommending proper airflow.
For a gaming PC with a motherboard heatsink, the standard model can make sense. For sustained transfers or systems with limited airflow, the heatsink version can provide additional thermal protection.
🧩 Motherboard Compatibility
For the best performance, your motherboard should have a PCIe 4.0 x4 M.2 slot.
The 990 PRO is also backward compatible with PCIe 3.0 systems. However, it will run at PCIe 3.0 speeds instead of reaching its full PCIe 4.0 performance.
It can also be installed in newer PCIe 5.0 or later M.2 slots. The SSD will simply operate using its PCIe 4.0 interface.
What to check before buying:
- M.2 NVMe support
- M.2 2280 slot
- PCIe x4 support
- Available motherboard heatsink
- BIOS support on older systems
🎮 Gaming and DirectStorage
The 990 PRO's high sequential and random performance makes it well suited for modern gaming PCs.
Samsung positions the drive for gaming, video editing, 3D workloads and other data-intensive applications.
The SSD can also benefit games and applications that use Microsoft's DirectStorage technology.
However, upgrading to a faster SSD does not automatically increase game FPS. The biggest improvements are usually seen in game loading times, file transfers and workloads that frequently access large amounts of data.
🛠️ Samsung Magician Software
Samsung provides Magician software for managing compatible SSDs.
With Samsung Magician, users can:
- Monitor SSD health
- Check drive temperature
- Run performance benchmarks
- Update SSD firmware
- Monitor drive health
- Check remaining drive life
- Optimize SSD performance
The software is also useful for keeping the SSD's firmware up to date.
💽 Capacities and Endurance
The Samsung 990 PRO is available in 1TB, 2TB and 4TB capacities.
Samsung rates the drives for different endurance levels depending on capacity:
- 1TB: 600 TBW
- 2TB: 1,200 TBW
- 4TB: 2,400 TBW
The 990 PRO comes with a 5-year limited warranty, subject to Samsung's warranty terms.
The drive uses Samsung V-NAND TLC flash and a Samsung-developed controller.
🆚 990 PRO vs Samsung 9100 PRO
The 990 PRO is sometimes confused with Samsung's newer 9100 PRO because of the similar naming and much higher advertised speeds.
The difference is significant.
Samsung 990 PRO
- PCIe 4.0 x4
- Up to 7,450 MB/s sequential read
- Up to 6,900 MB/s sequential write
Samsung 9100 PRO
- PCIe 5.0 x4
- Up to 14,800 MB/s sequential read
- Up to 13,400 MB/s sequential write
The 14,800 MB/s figure belongs to the 9100 PRO, not the 990 PRO.
📋 What to Know at a Glance
Interface: PCIe 4.0 x4
Protocol: NVMe 2.0
Form factor: M.2 2280
Maximum read speed: 7,450 MB/s
Maximum write speed: 6,900 MB/s
NAND: Samsung V-NAND TLC
Capacities: 1TB, 2TB, 4TB
Heatsink version: Yes
PCIe 3.0 compatibility: Yes
Operating temperature: 0°C to 70°C
Warranty: 5 years
Maximum endurance: 2,400 TBW
🎮 The Bottom Line
The Samsung 990 PRO remains a high-performance PCIe 4.0 NVMe SSD, but it is not a PCIe 6.0 drive and does not deliver 14,000 MB/s read speeds.
Those higher numbers are associated with newer PCIe 5.0 SSDs, particularly Samsung's 9100 PRO, which reaches up to 14,800 MB/s sequential read speeds.
For gamers and PC builders, the 990 PRO is still notable for its strong PCIe 4.0 performance, thermal management, M.2 compatibility and Samsung Magician software support.
